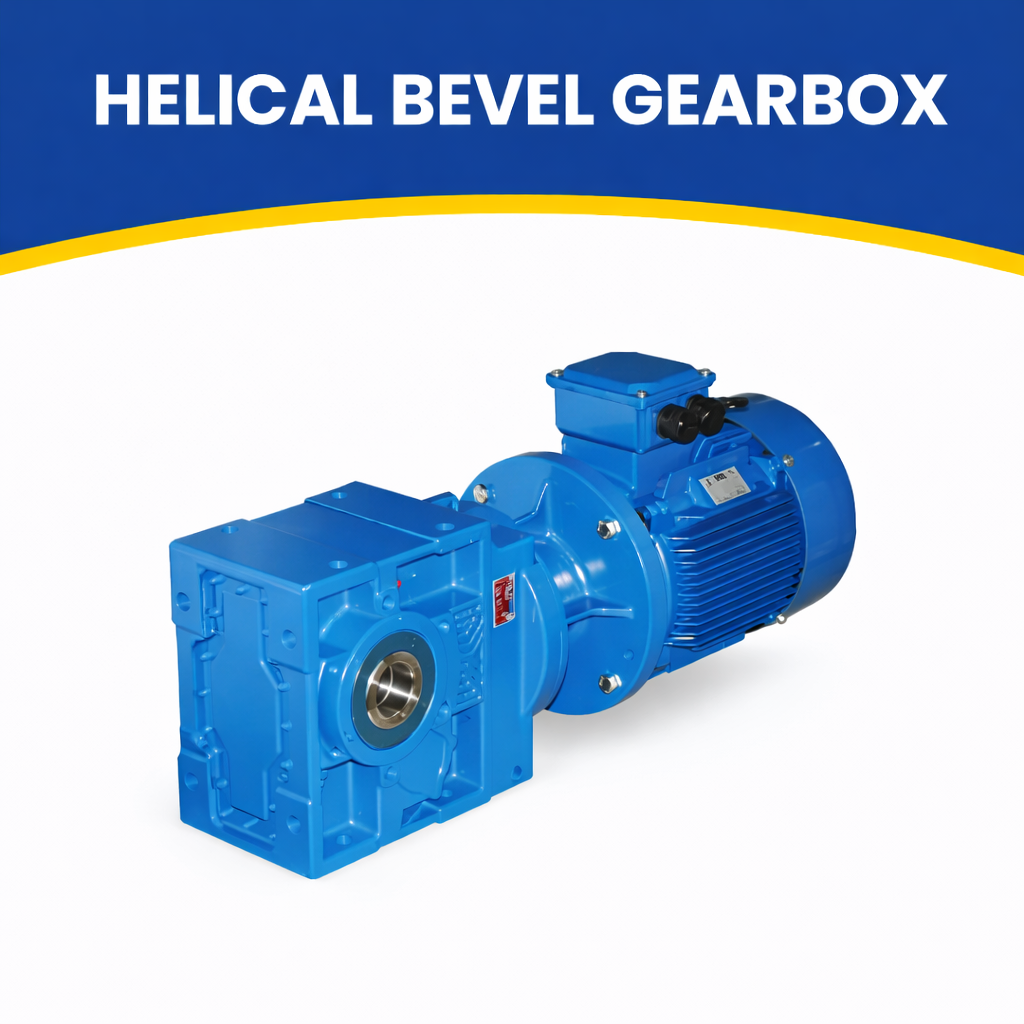

Helical Bevel Gearbox
High-Efficiency Right-Angle Drive Solutions by JRB Engineering Works
JRB Engineering Works offers high-performance Helical Bevel Gearboxes designed to deliver smooth, efficient, and reliable power transmission in compact right-angle configurations. Manufactured using advanced engineering techniques and premium-grade materials, our helical bevel gearboxes are built to handle high torque loads while maintaining quiet operation and long service life.
Helical bevel gearboxes are widely used where a change in drive direction is required without compromising efficiency. At JRB Engineering Works, each gearbox is engineered with precision to meet the demanding requirements of modern industrial applications.
Helical bevel geared motors are angular geared motors where the gear unit output shaft is rotated through 90° to the motor shaft. Helical bevel geared units can either have a solid or a hollow shaft.
Features :
Optimized gearing geometry and precise grinding create a smooth rolling of the tooth flanks involved in the engagement.
Gear unit housings, covers, feet, flanges and motor casings are highly ribbed and securely connected to each other.
One-piece, low-maintenance and compact IEC motor adapter for the assembly of standard IEC motors.
Connection dimensions of shafts, feet and flanges are identical with those of the market standard.
The ruggedly designed casing ensures maximum robustness under high load and failure-free operation
Precision Engineering & Advanced Gear Design
Our helical bevel gearboxes feature precision-cut helical bevel gears that ensure:
Smooth and quiet operation
High torque transmission capability
Excellent load distribution
Reduced wear and vibration
The helical tooth design provides greater contact area between gears, resulting in higher efficiency and improved durability compared to conventional gear systems.
Robust Construction & Material Quality
Manufactured with high-strength cast iron or fabricated steel housings, our gearboxes are designed to withstand harsh industrial environments. Internal components are made from high-grade alloy steel, precisely machined and heat treated to enhance strength and wear resistance.
Advanced heat treatment processes such as:
Case carburizing
Induction hardening
Through hardening
ensure extended operational life and consistent performance under continuous-duty conditions.
High Efficiency & Reliable Performance
Helical bevel gearboxes from JRB Engineering Works are engineered for:
High mechanical efficiency
Stable and smooth torque output
Low noise and vibration levels
Minimal maintenance requirements
These features make them ideal for applications requiring continuous operation and high reliability.
Wide Range of Applications
Our helical bevel gearboxes are extensively used in:
Conveyors and material handling systems
Packaging and automation machinery
Cement, steel, and mining industries
Textile and printing machines
Food processing and chemical plants
Heavy engineering and industrial drives
Customization & Design Flexibility
We provide custom-built helical bevel gearboxes as per customer requirements. Customization options include:
Gear ratios
Input and output shaft configurations
Mounting positions
Torque and power ratings
Motorized and non-motorized variants
Gearboxes can be supplied as standalone units or with matched electric motors.
Quality Assurance
Each helical bevel gearbox undergoes strict quality inspections, including:
Gear tooth profile and alignment checks
Dimensional accuracy verification
Noise and vibration testing
Load and performance testing
This ensures dependable operation, long service life, and customer satisfaction.
Why Choose JRB Engineering Works?
Expertise in precision gearbox manufacturing
Advanced CNC machining and gear cutting facilities
Custom and bulk production capabilities
Competitive pricing and timely delivery
Strong focus on quality and customer support
Trusted Power Transmission Solutions
With a commitment to engineering excellence, Helical Bevel Gearboxes from JRB Engineering Works provide efficient, compact, and reliable power transmission solutions for a wide range of industrial applications. Our gearboxes are designed to improve productivity, reduce downtime, and deliver consistent performance in demanding operating conditions.
