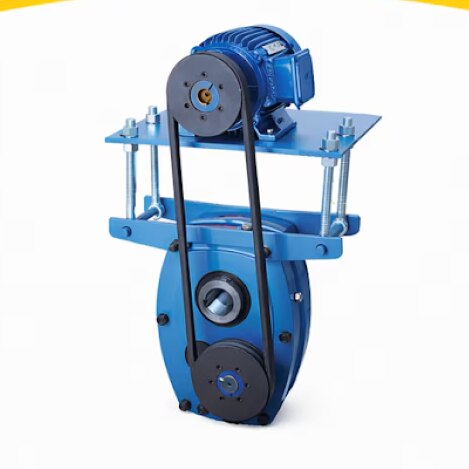

Kalsi Gearbox Requirements to Confirm Before Buying

A gearbox cannot be selected safely from motor horsepower and reduction ratio alone. Before you request a quotation, define the load, starting conditions, shaft geometry, mounting position, site environment and documents you expect so the quoted unit matches the machine rather than only the motor nameplate.

What input data is needed to size the gearbox correctly?

Start with the driven machine’s demand, not only the motor nameplate. The kalsi gearbox requirements should state:

1. Motor power in kW or HP, input speed in RPM, required output speed, speed ratio, operating hours per day, starts and stops per hour, direction reversals, duty cycle and maximum transient or shock torque.

2. Calculate nominal continuous motor torque with T in N·m = 9,550 × P in kW ÷ n in RPM. A 7.5 kW motor at 1,440 RPM produces about 49.7 N·m before reduction losses and service-factor adjustments.

3. State output torque separately for continuous operation, startup and the highest load event. Motor nameplate power describes capacity, not necessarily demand: conveyors, mixers, crushers and reciprocating machines can impose higher starting or shock loads.

4. Ask for the quoted gearbox’s mechanical rating and thermal rating, plus the limiting factor for each: tooth bending, pitting or contact stress, shaft strength, bearings or heat. For cylindrical gears, request the rating basis, such as ISO 6336 or AGMA 2101.

5. Provide radial and axial loads at every shaft, their direction and the distance from each shaft shoulder or bearing to the load. Include the overhung position of any pulley, chain sprocket or belt; the gearbox can meet its torque rating while an external drive overloads its shaft or bearings.

How do ratio, service factor and variable speed affect selection?

Confirm the exact ratio by dividing input speed by required output speed, then require the quotation to state the actual nominal ratio and allowable ratio tolerance. Reject “approximately 20:1” when the driven machine needs a defined output speed.

For a variable-frequency drive, calculate output speed at the motor’s normal, minimum and maximum speeds. Put these details in the kalsi gearbox manufacturer requirements sheet:

• Minimum and maximum input frequency
• Required output-speed range
• Acceleration and deceleration times
• Braking method
• Regenerative events and torsional events

Apply a documented service factor to continuous torque for frequent starts, shock loads, reversing duty and intermittent operation. Do not apply one generic factor to every machine. State continuous, intermittent, peak and emergency torque separately, and ask the manufacturer to show the selected service factor and its calculation.

Low-speed operation can reduce cooling from a motor-mounted fan and change the gearbox’s thermal capacity. Rapid acceleration can create transient torque above the motor’s rated torque, so a gearbox selected only at base speed can fail during starting.

Add the required load-control or safety device explicitly:

• Backstop for reverse rotation
• Holding brake for stopped-load restraint
• Torque limiter for controlled torque release
• Overload clutch for disconnecting an excessive load

Do not infer any of these functions from the reduction ratio or from a motor brake.

What mechanical and site details must match the installation?

Compatibility starts with the exact mounting and interface, not the phrase “standard mounting.” State the unit as foot-mounted, flange-mounted, shaft-mounted, torque-arm mounted or another configuration, plus horizontal or vertical orientation.

• Give the available envelope: length, width, height, shaft centreline, guard clearance, and access for oil filling and draining.
• Specify input and output shaft diameters, solid or hollow construction, extension lengths, key or spline standard, keyway dimensions, flange pilot diameter, bolt-hole pattern, rotation direction, and allowable shaft runout.
• For a hollow shaft, state the driven-shaft tolerance, required clearance or interference fit, retaining method, and dismantling provision.
• Request allowable radial and axial loads at each shaft, with every load position measured from the bearing.
• Record indoor or outdoor location, actual ambient range, dust, moisture, monsoon washdown, chemicals, altitude, and required IP rating. These conditions determine seal arrangement and breather position.
• Specify lubricant grade and viscosity, oil quantity, filling method, start-up temperature range, gearbox surface-temperature limit, and whether the unit arrives oil-filled, dry, or with transport plugs. Match oil to start-up temperature and speed, not ambient temperature alone.
• For corrosion protection, name the surface-preparation grade, coating system, dry-film thickness, colour, and ISO 12944 corrosivity category.

This is the practical Kalsi gearbox for requirements before buying in New Delhi: a dimensional and environmental record that prevents an incompatible unit reaching site. “Rustproof” and “standard mounting” belong nowhere on the purchase order.

What should you verify with a Kalsi gearbox supplier before placing the order?

Request a certified dimensional drawing before releasing the purchase order. It must show mounting holes, pilot diameter, shaft extensions, keyways, rotation direction and the complete length, width and height envelope.

1. Ask the supplier to confirm the exact ratio, output speed, continuous and peak torque ratings, service factor, thermal rating, mounting orientation, lubricant and environmental protection in writing. Replace “standard mounting” with the exact mounting code or drawing reference.

2. Require the gear-rating basis, such as ISO 6336 or AGMA 2101, plus material or heat-treatment records when specified, no-load test results, installation limits and warranty exclusions. These documents expose an undersized gearset before delivery.

3. Confirm whether the gearbox arrives oil-filled, dry or with transport plugs. Record the oil grade, viscosity, quantity or filling method, commissioning procedure and allowable starting temperature.

4. For VFD applications, obtain written confirmation that the full minimum-to-maximum speed range, acceleration profile, braking method and regenerative events are covered. For precision drives, specify backlash, noise, torsional stiffness and allowable angular or parallel shaft misalignment.

5. When comparing a kalsi gearbox supplier in New Delhi, a local industrial gearbox manufacturer such as OPTIGEAR can check shaft fit, mounting space and site conditions before dispatch. Judge the supplier by the evidence supplied, not location alone. Ensure dust, monsoon moisture, washdown, chemicals, altitude, seals, breather position and enclosure protection match the installation.

What belongs on the final Kalsi gearbox order checklist?

Before approval, make the kalsi gearbox order checklist the controlling document, not the quotation headline.

1. Record motor power in kW or HP, input RPM range, output RPM, actual ratio, ratio tolerance, continuous torque, startup torque, peak torque, service factor, duty cycle, starts per hour and reversing frequency.

2. Identify mounting type and orientation, dimensional drawing number, shaft diameters and lengths, keyway or spline details, rotation direction, radial and axial loads, overhung-load position, available installation space, and coupling or pulley details.

3. State ambient temperature, dust, water, washdown, chemicals, altitude, indoor or outdoor location, enclosure or IP requirement, seals, breather, paint system, lubricant and oil-fill status. Specify the required oil and whether the gearbox ships filled, dry or with transport plugs.

4. Request bearing and seal part numbers, oil-change interval, inspection points, commissioning instructions, and written procedures for abnormal noise, overheating, leakage and backlash. Add spare-part lead time, commissioning support and service response terms.

5. Confirm whether a brake, backstop, torque limiter or overload clutch is included. Never infer these functions from the reduction ratio or motor brake.

6. Require the certified dimensional drawing, rotation and ratio confirmation, lubrication instructions, installation limits, no-load test results, required material or heat-treatment records, and warranty exclusions. Reject any quotation listing only motor size, gearbox ratio and price; this written record gives you a direct comparison between quotations.

Frequently asked questions

• What input data is needed to size a Kalsi gearbox correctly?

  Provide the driven machine’s required torque, output speed, power, starting load, duty cycle, shock loading, operating hours and ambient conditions. Include motor speed and power, but do not use the motor nameplate alone.

• How do ratio, service factor and variable speed affect gearbox selection?

  The ratio must convert the motor speed to the machine’s required output speed. Select a service factor that reflects operating hours, load variation, starts and shock. For variable-speed drives, check torque, lubrication, cooling and permissible speed across the full operating range.

• What mechanical and site details must match the installation?

  Confirm shaft diameter and direction, mounting position, base dimensions, coupling or pulley arrangement, rotation, foundation, alignment access, ambient temperature, dust, moisture and available maintenance clearance.

• What should you verify with a Kalsi gearbox supplier before placing the order?

  Request the duty-point calculation, gearbox model, ratio, rated output torque, service factor, dimensions, shaft details, mounting orientation, lubrication specification, delivery scope, warranty terms and inspection or test documents.

• What belongs on the final Kalsi gearbox order checklist?

  Record the machine duty, motor data, ratio, output speed, torque, service factor, operating range, mounting, shaft and rotation details, environment, accessories, drawings, documentation, delivery date and approved quotation.
