An urgent screw conveyor gearbox quotation cannot be sized from motor horsepower or conveyor diameter alone. By supplying the right operating data, torque checks, interface measurements, environmental details, and replacement records, you can obtain a quotation that is both technically suitable and genuinely dispatchable.
Key takeaways
- Send conveyor load, speed, material, duty cycle and site conditions before quotation.
- Verify running torque, starting torque and reduction ratio before approving the gearbox.
- Match shaft, flange, base, rotation and mounting dimensions against the conveyor drawing.
- Approve a documented datasheet, drawing, delivery date and inspection checklist.
Send the complete conveyor and operating data with the quotation request
For the core gearbox manufacturers requirements for urgent screw conveyor orders in New Delhi, send operating data before requesting a firm quotation. Motor horsepower and nominal screw diameter alone cannot size the drive.
- State screw diameter, overall length, layout (horizontal, inclined or vertical), inclination angle, screw speed in rpm, required output rotation, and capacity in tonnes per hour or cubic metres per hour.
- Name the material and give bulk density in kilograms per cubic metre, abrasiveness, moisture content, stickiness and temperature.
- Describe loading condition, feeder geometry, fill level and whether the conveyor starts empty or fully loaded.
- Give motor power in kilowatts, motor speed in rpm, start-stop frequency and operating hours per day.
Material friction increases drag, while feeder geometry controls how much product enters the screw. Higher fill levels and an inclined conveyor raise absorbed power; a dense, sticky or abrasive product can turn a seemingly adequate drive into an undersized one.
Attach the conveyor general-arrangement drawing, process description and motor nameplate. Include the loading point, discharge arrangement and drive location on the drawing. Do not rely on a nominal conveyor size: without these documents, the manufacturer must guess the duty, delay the quotation or select a gearbox that trips, overheats or fails at startup.
Verify running torque, starting torque and the reduction ratio before approval
Verify torque and ratio before approval. The first check is T = 9,550 × transmitted power in kilowatts ÷ output speed in rpm, giving output torque in newton-metres. Use actual absorbed power, not motor nameplate power alone.
| Torque condition | What it represents | What to disclose |
|---|---|---|
| Normal running torque | Continuous load while conveying | Material, fill level and speed |
| Starting or plugging torque | Transient load during a full start or stalled restart | Start full, packed trough or plugging |
| Jam torque | Load when foreign material or compaction stops the screw | Jam protection and clearing method |
| Service-factor-adjusted torque | Torque multiplied for shock, duty and cycling | Start-stop frequency and operating hours |
State whether the screw starts full, stops against packed material, reverses, or cycles frequently. Inclination, dense material and a plugged trough increase absorbed power and torque, so compare calculated and transient loads with rated torque and permissible peak torque.
Also check the reducer’s allowable radial load and axial thrust capacity; torque alone does not confirm bearing suitability. These are core gearbox manufacturers requirements for screw conveyor orders.
A 1,450 rpm motor and a required 29 rpm screw imply a nominal 50:1 ratio. Confirm slip, efficiency, load behaviour, starting torque and the gearbox’s actual output speed before approval, because the nominal ratio will not guarantee the required screw speed.
Match the gearbox arrangement and every mechanical interface dimension
Choose the drive arrangement from the conveyor layout, not from the nominal screw diameter. An urgent screw conveyor gearbox in new delhi must match the existing interface without an adapter or machining.
| Arrangement | Interface to confirm | Layout clue |
|---|---|---|
| Inline | Keyed solid output or hollow-bore connection | Motor and screw share one axis |
| Parallel-shaft | Output shaft, key or shrink disc | Compact offset drive |

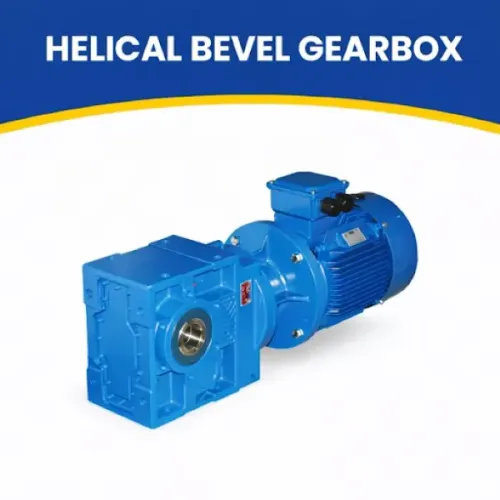

| Right-angle | Hollow-bore, keyed shaft or direct flange | Motor sits across the conveyor |

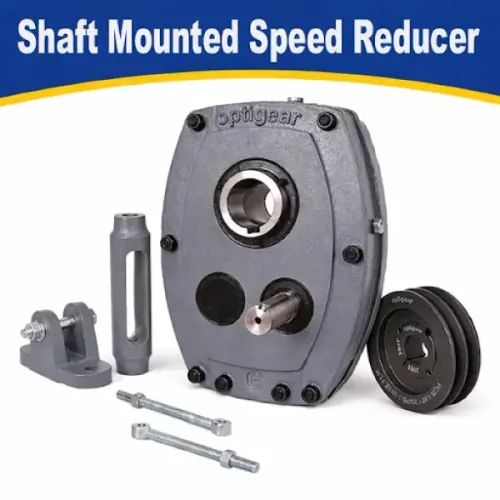

| Shaft-mounted | Bore, key, torque arm and shaft orientation | Reducer hangs on the conveyor shaft |

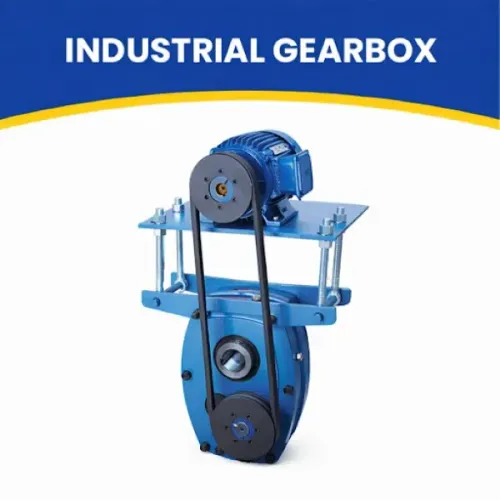

| Chain or belt | Sprocket or pulley, centre distance and guard clearance | Remote motor position |
Send these measurements with the request:
- Output shaft diameter, extension length, keyway width and keyway depth
- Mounting-hole pattern, flange diameter, bolt-circle diameter and shaft centre height
- Motor frame size, input arrangement, rotation direction and shaft orientation
- Brake, backstop, coupling, torque-arm and guard details
Confirm whether the replacement mounts horizontally, vertically or at an incline. Changing orientation can alter oil level, breather location, seal loading, bearing lubrication and thermal rating.
For a replacement, attach a clear nameplate photograph, existing model and serial number, ratio or output speed, motor nameplate, mounting orientation, measured shaft dimensions and photographs of the installed unit. A similar-looking unit can still have a different bore or bearing arrangement. Nominal screw diameter is no substitute for these measurements.
Specify environmental, electrical and delivery conditions that change the order
1. Put the site environment on the purchase specification, not in a later phone call. State abrasive solids, corrosive or wet material, high-temperature product, sticky product, explosive-dust zone, outdoor exposure, washdown, ambient temperature, dust, monsoon humidity and storage duration.
These gearbox manufacturers requirements for urgent screw conveyor orders in New Delhi affect seals, paint, breathers, heaters and preservation. Specify IP protection separately for the motor, terminal box, sensors, brake and backstop; an IP rating proves neither gearbox load capacity nor chemical resistance.
2. Confirm the electrical package from the site: actual supply voltage, phase, frequency, motor efficiency class, hazardous-area classification, starter or VFD, motor mounting and rotation direction. Do not assume a generic motor or 50 Hz supply.
State lubricant type, initial fill, breather position, preservation method and storage life; incorrect oil or a misplaced breather can cause leakage or overheating after an urgent screw conveyor gearbox in New Delhi reaches site.
3. Separate ex-stock availability from manufacturing lead time. Ask whether the promised date includes the gearbox, motor, coupling, base, torque arm, hollow-bore kit, backstop, guards, oil filling, inspection records and packing. A reducer on the shelf does not meet the deadline if its motor flange or backstop is missing.
For gearbox manufacturers requirements for urgent screw conveyor orders in New Delhi, require the supplier to list each item’s availability date and confirm storage protection for the stated holding period.
Use a documented approval package to confirm the supplier can deliver the right unit
Do not release an urgent unit on a verbal promise. Treat this as the gearbox manufacturers requirements screw conveyor dispatch checklist and require written confirmation for every item:
1. Approved datasheet or GA drawing showing the gearbox model, confirmed ratio and output speed.
2. Rated, starting and peak torque, plus allowable radial load and axial load at the stated output speed.
3. Mounting orientation, shaft diameter and extension, key dimensions, flange diameter, bolt circle and centre height.
4. Lubricant grade, quantity, initial-fill condition, breather position and preservation method.
5. Rotation confirmation, motor power and speed, frame size, voltage, phase, frequency, starter or VFD, brake and backstop details.
6. Routine test or inspection record, with the document number linked to the supplied unit.
7. A stated availability date for every included component: gearbox, motor, coupling, base, torque arm, hollow-bore kit, backstop, guards, oil filling, inspection documents and packing.
This package lets you inspect compatibility before installation. It separates a genuine urgent solution from a gearbox that is merely available in a similar size.
A buyer seeking an urgent screw conveyor gearbox in New Delhi can give OPTIGEAR this same checklist when requesting a screw-conveyor gearbox or replacement transmission package.
Require the manufacturer to confirm the technical data and complete delivery scope in writing, because an immediately available reducer is not an immediately installable drive if its coupling or mounting kit is missing.
Related product
 | By JRB Engineering Works Optigears is the world’s top manufacturer of screw conveyors and feeders. View product → |
Frequently asked questions
What data do gearbox manufacturers need for an urgent screw conveyor order?
Send screw diameter and length, capacity, material handled, bulk density, screw speed, inclination, duty cycle, motor details, starting conditions and site environment.
How do you verify a screw conveyor gearbox before approval?
Check running torque, starting torque, service factor, reduction ratio, output speed, rotation direction and the selected motor against the conveyor duty.
Which mechanical interfaces must match the replacement gearbox?
Compare output shaft diameter and length, keyway, flange or foot mounting, bolt-hole pattern, centre height, rotation, coupling and base dimensions.
What environmental and delivery details affect an urgent gearbox order?
Specify ambient temperature, dust, moisture, washdown exposure, hazardous-area requirements, motor voltage and frequency, lubrication, delivery location and required date.
